research area(s): mixed reality (MR) fabrication
material: irregularly shaped tree logs
size: 6'-7" x 6'-7" x 9"
figure_01: video of timber coordination model through the Microsoft Hololens 2
Timber De-Standardized is a framework that salvages irregular and regular shaped tree logs by utilizing a mixed reality (MR) interface for the design, fabrication, and assembly of a structurally viable tree log assembly. The process engages users through a direct, hands-on design approach to iteratively modify and design irregular geometry at full scale within an immersive MR environment without altering the original material. A digital archive of 3D scanned logs are the building elements from which users, designing in the MR environment, can digitally harvest (though slicing) and place the elements into a digitally constructed whole. The constructed whole is structurally analyzed and optimized through recursive feedback loops to preserve the user’s predetermined design. This iterative toggling between the physical and virtual emancipates the use of irregular tree log structures while informing and prioritizing the user’s design intent. To test this approach, a scaled prototype was developed and fabricated in MR.
By creating a framework that links a holographic digital design to a physical catalog of material, the interactive workflow provides greater design agency to users as co-creators in processing material parts. This participation enables users to have a direct impact on the design of discretized tree logs that would otherwise have been discarded in standardized manufacturing. This paper presents an approach in which complex tree log structures can be made without the use of robotic fabrication tools. This workflow opens new opportunities for design in which users can freely configure structures with non-standardized elements within an intuitive MR environment.

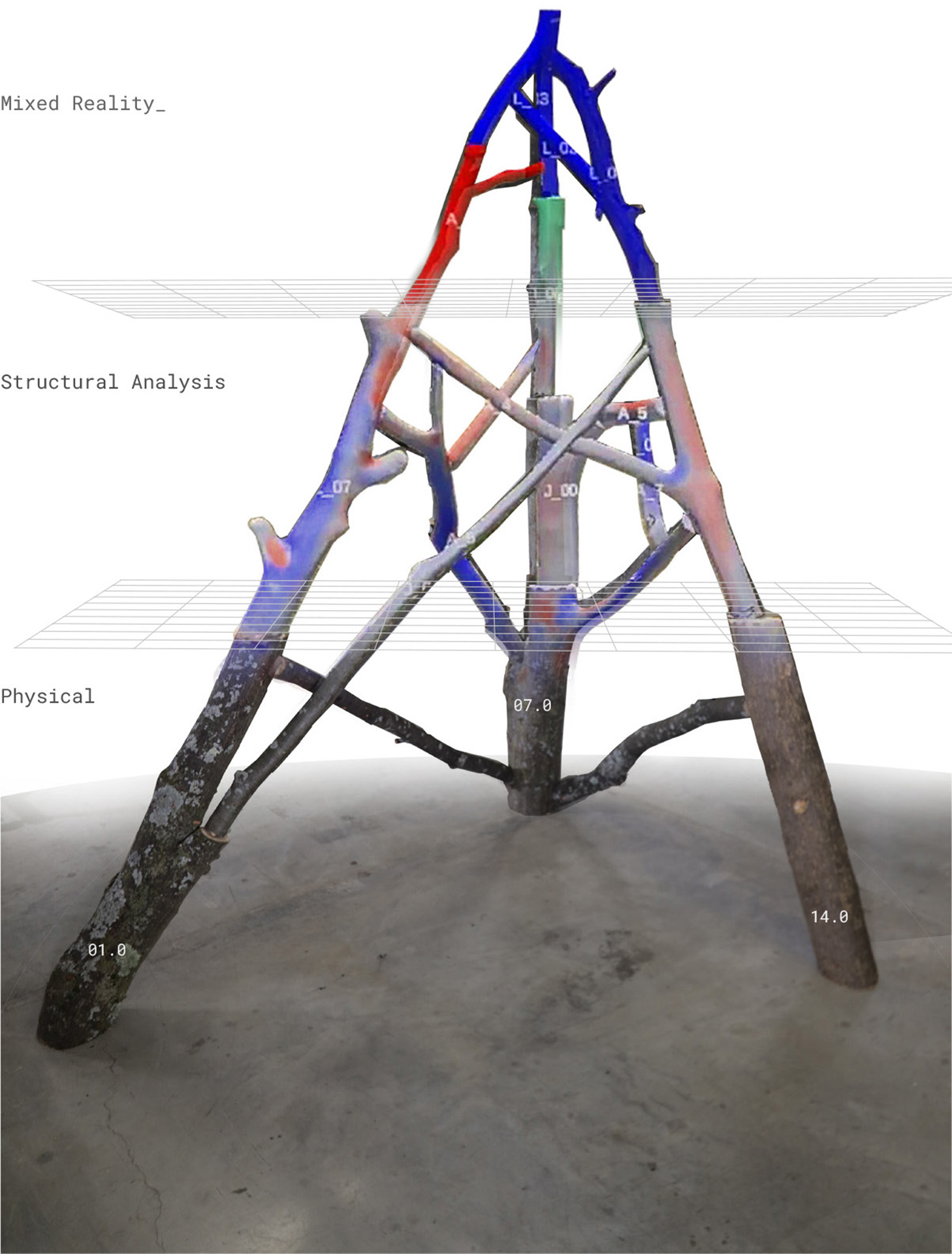

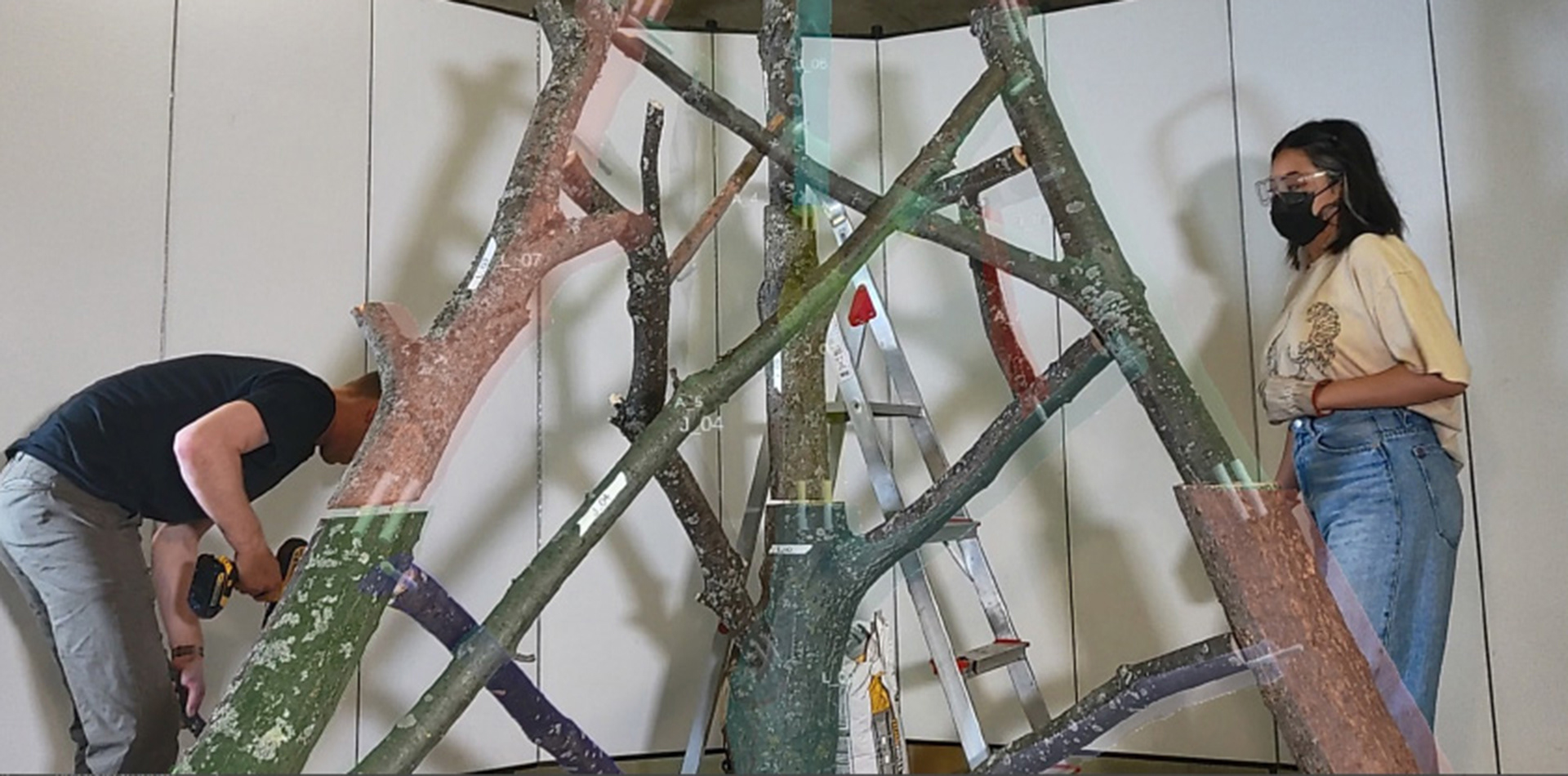

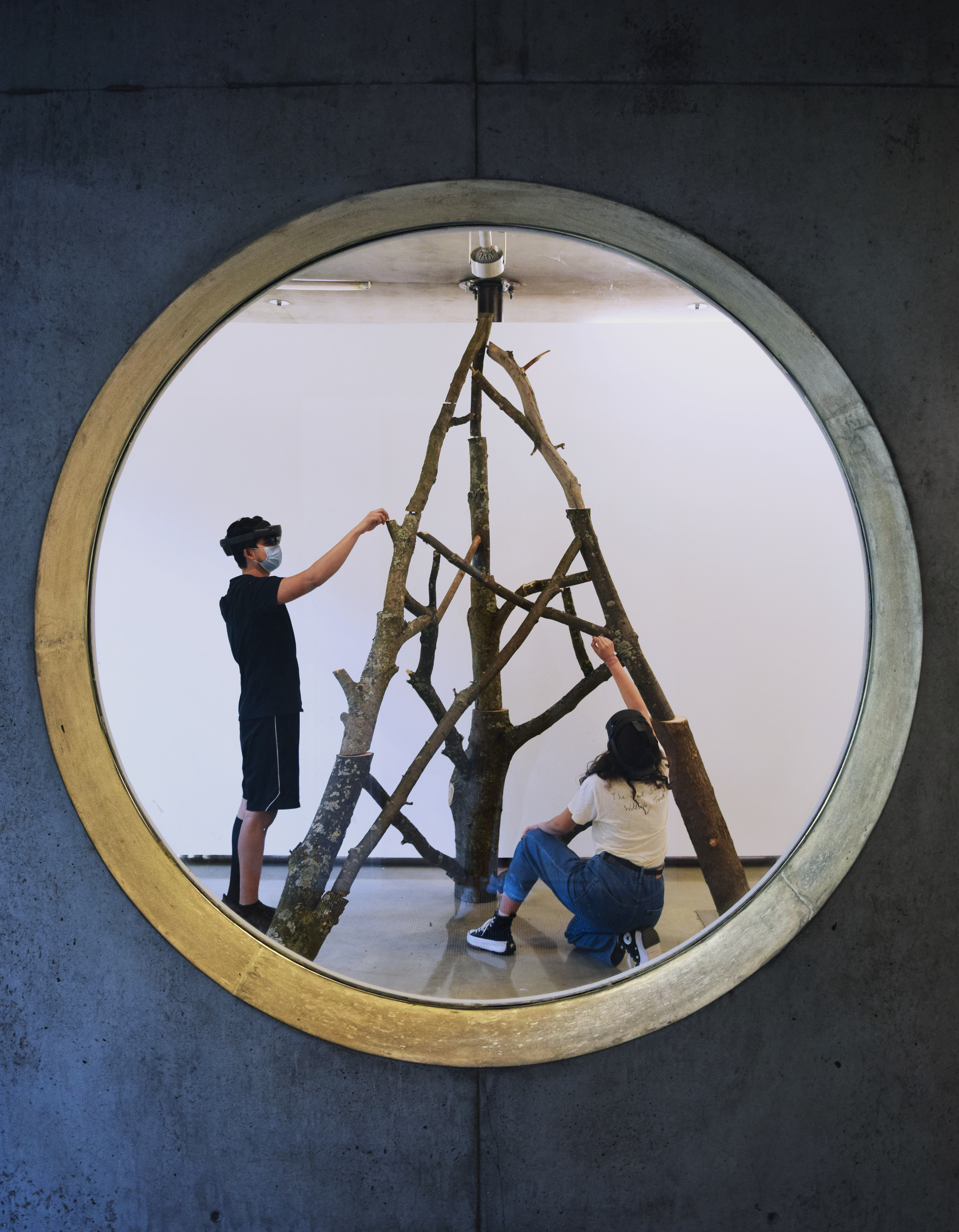

figure_02: timber de-standardized; two users wearing the Microsoft Hololens 2 interact with the installation through the MR interface

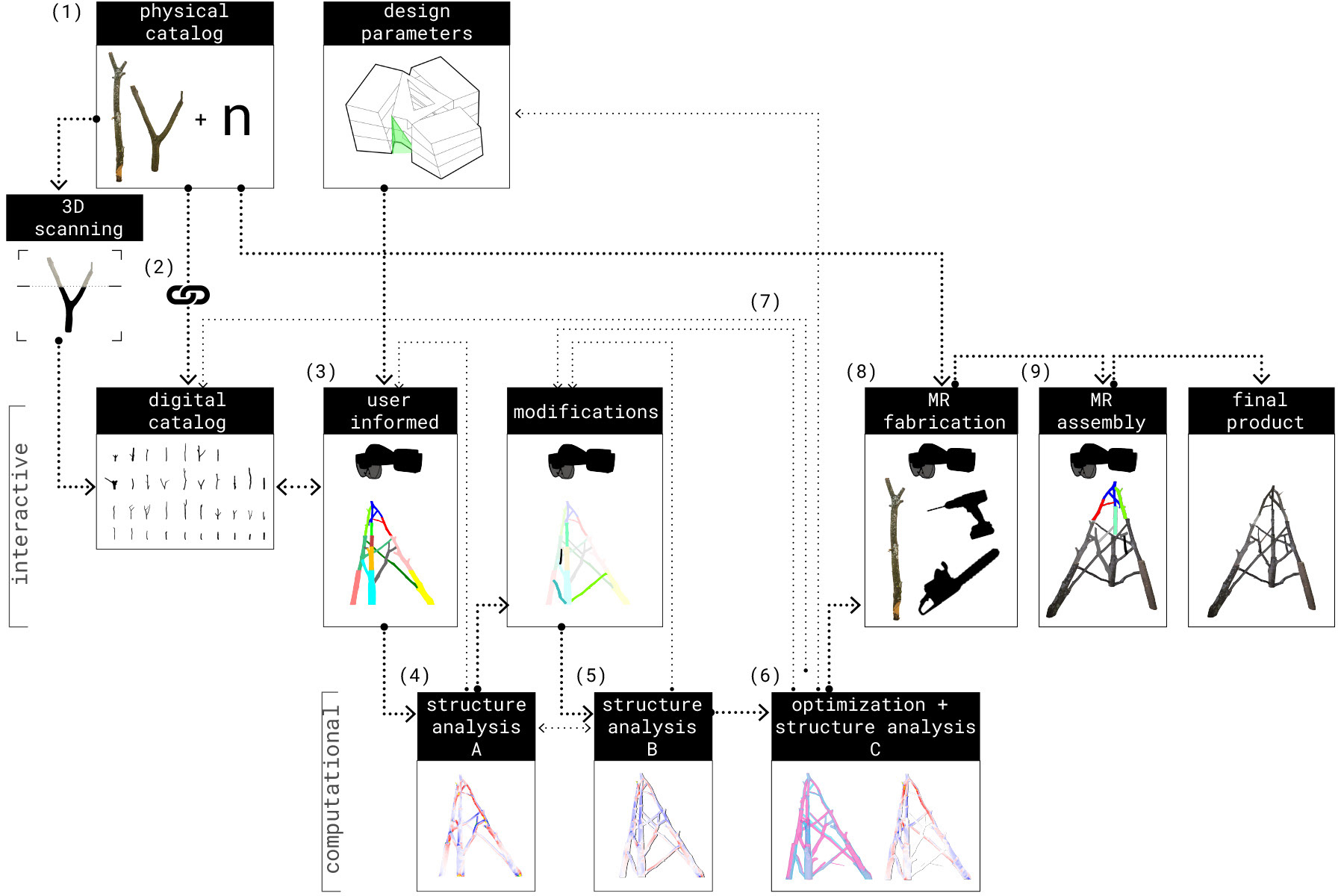

figure_03: workflow diagram

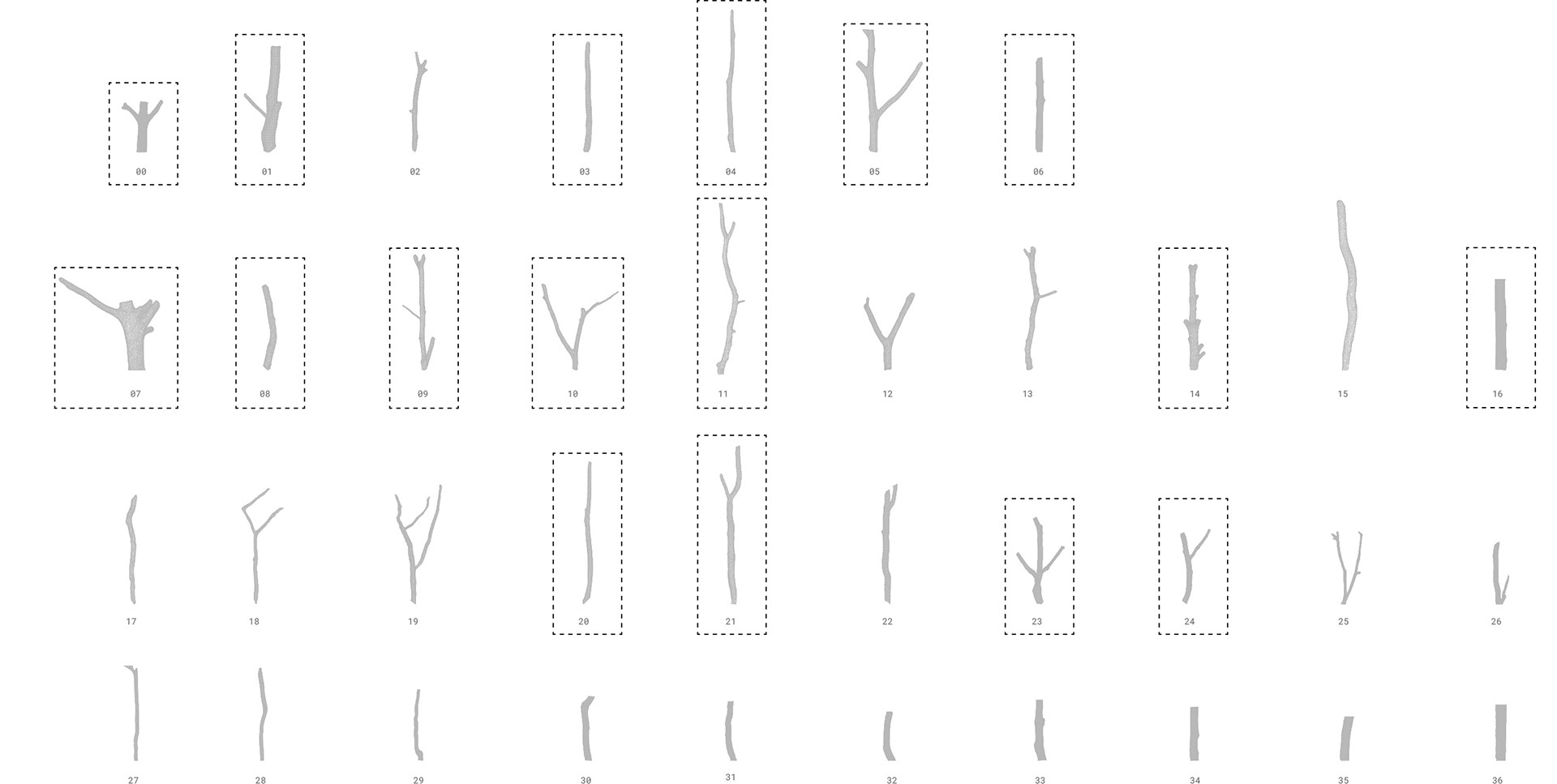

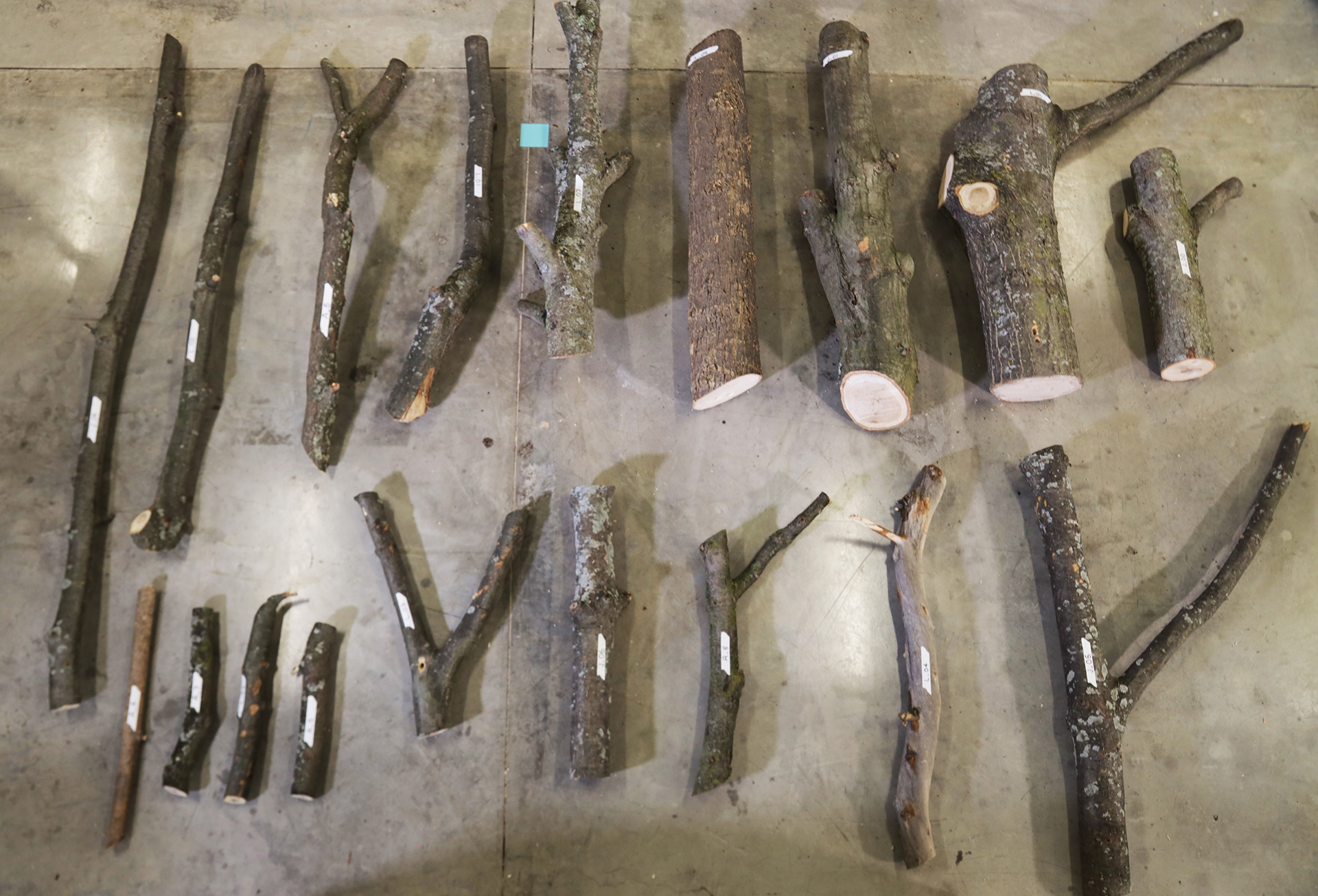

figure_04: whole log catalog
figure_05: log processing through AR (make GIF)

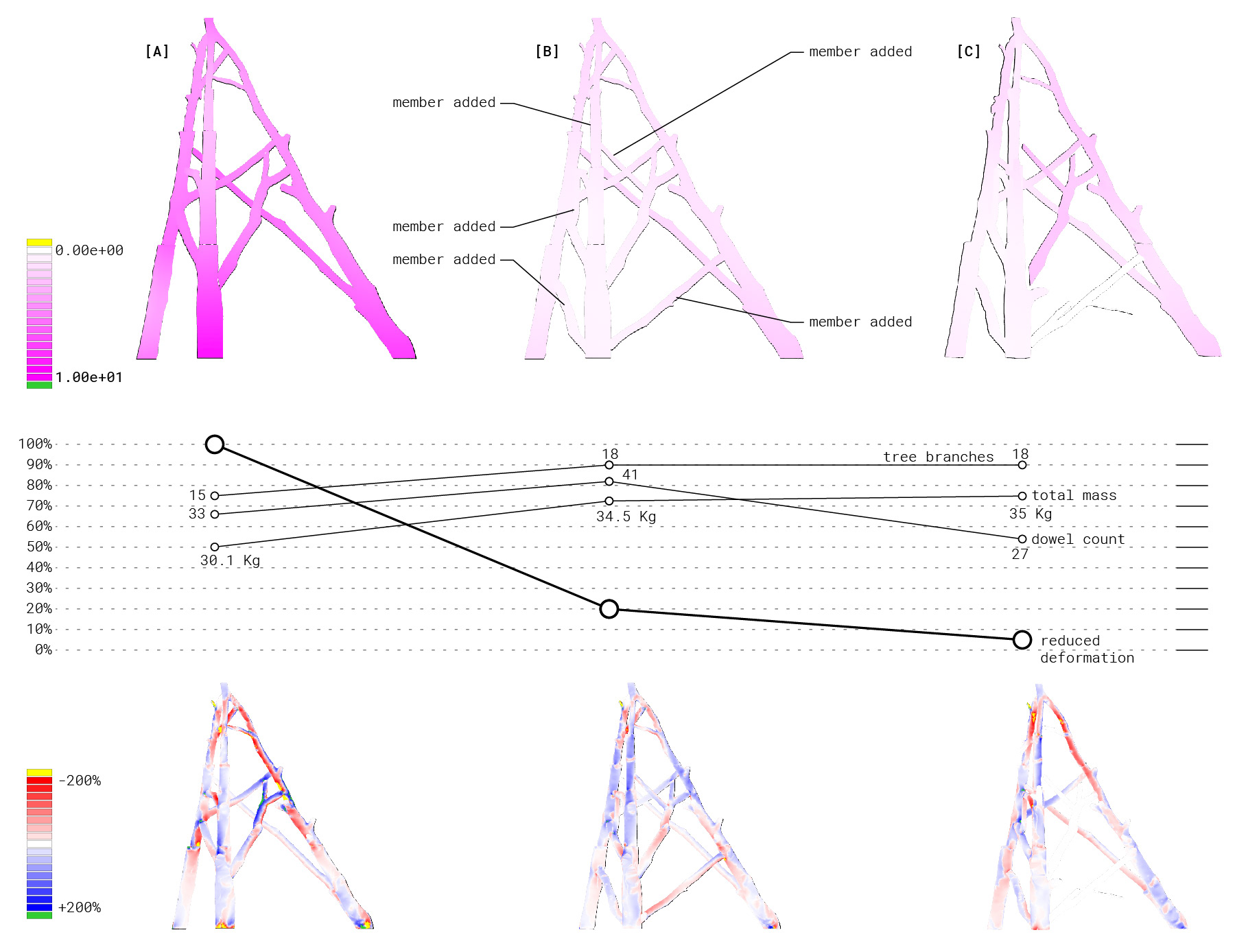

figure_06: structural optimization
By creating a framework that links a holographic digital design to a physical catalog of material, the interactive workflow provides greater design agency to users as co-creators in processing material parts. This participation enables users to have a direct impact on the design of discretized tree logs that would otherwise have been discarded in standardized manufacturing. This paper presents an approach in which complex tree log structures can be made without the use of robotic fabrication tools. This workflow opens new opportunities for design in which users can freely configure structures with non-standardized elements within an intuitive MR environment.
figure_07: structural optimization

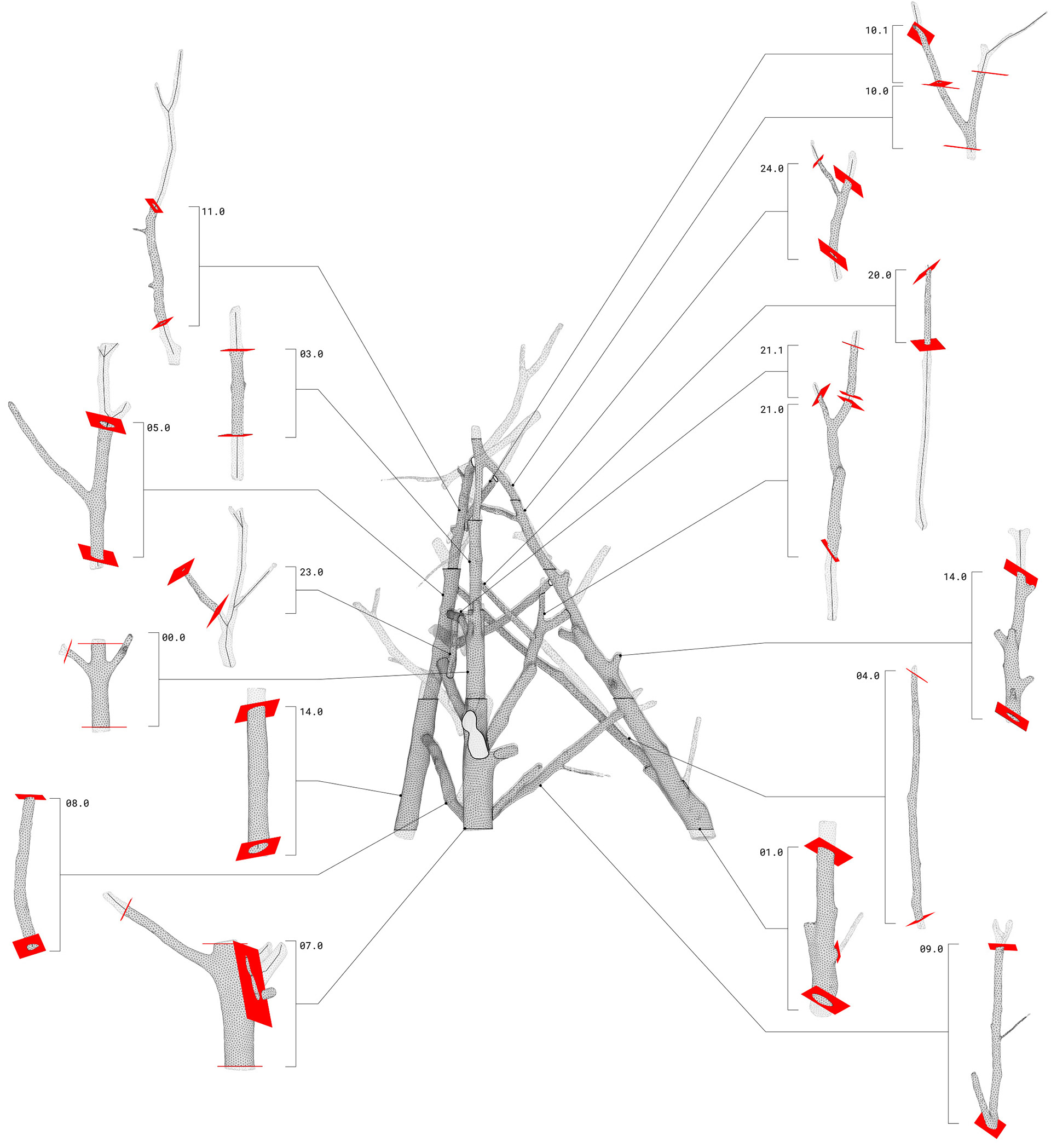

figure_08: tree log re-indexing
figure_09: MR hole drilling instruction
figure_10: MR joint connection
